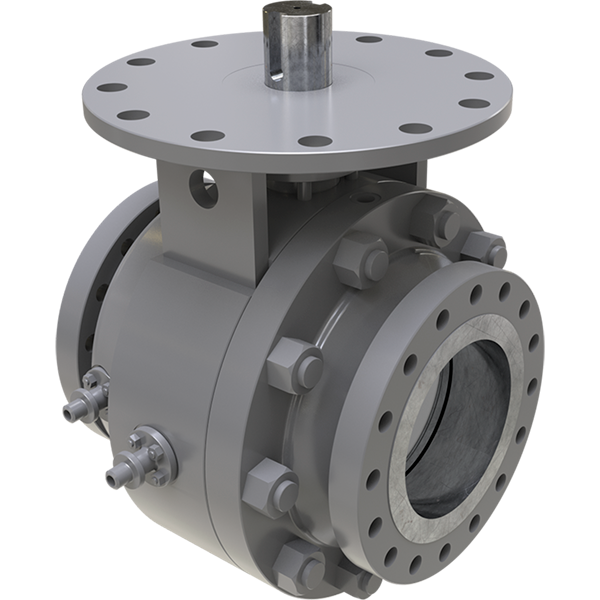

MOGAS C-Series Customizable Isolation Valve
The C-Series valve is the best choice in large bore isolation applications. MOGAS engineers have successfully designed the C-Series valve line which isolates under the extreme conditions – high temperature up to 1652°F (900°C), high pressures up to 43,000 psig (2965 bar g), media build-up, cycling with solids in the line and erosive attack of materials and coatings. With more than 40 years of engineering expertise, each C-Series valve is designed specifically for the application.
Each ball and seat subassembly is mate-lapped by hand and put through a rigorous testing procedure to ensure its integrity. The C-Series valve is available in full or reduced bore, ½ inch to 42 inches and in a wide variety of end connections.
... Read more Read lessSeat designs
Engineered for maximum performance in application-specific conditions
Live-loaded packing
- Ensures constant packing energization
- Prevents stem packing leaks and risk of fugitive emissions
Body Gaskets
Pressure energized body gasket available to meet industry codes
Materials
- Application-specific materials available, including exotics
- Extends valve life
Coatings
Application-specific coatings provide enhanced erosion and corrosion resistance
Liners and inlays
Liners and inlays can be applied to the through-bore or wetted surfaces
Purge ports
Purge ports are available
End connections
Available end connections include flanged, welded, hub/clamp or RTJ
